Streamlight TLR-8 HL-X USB

Streamlight TLR-8 HL-X USB

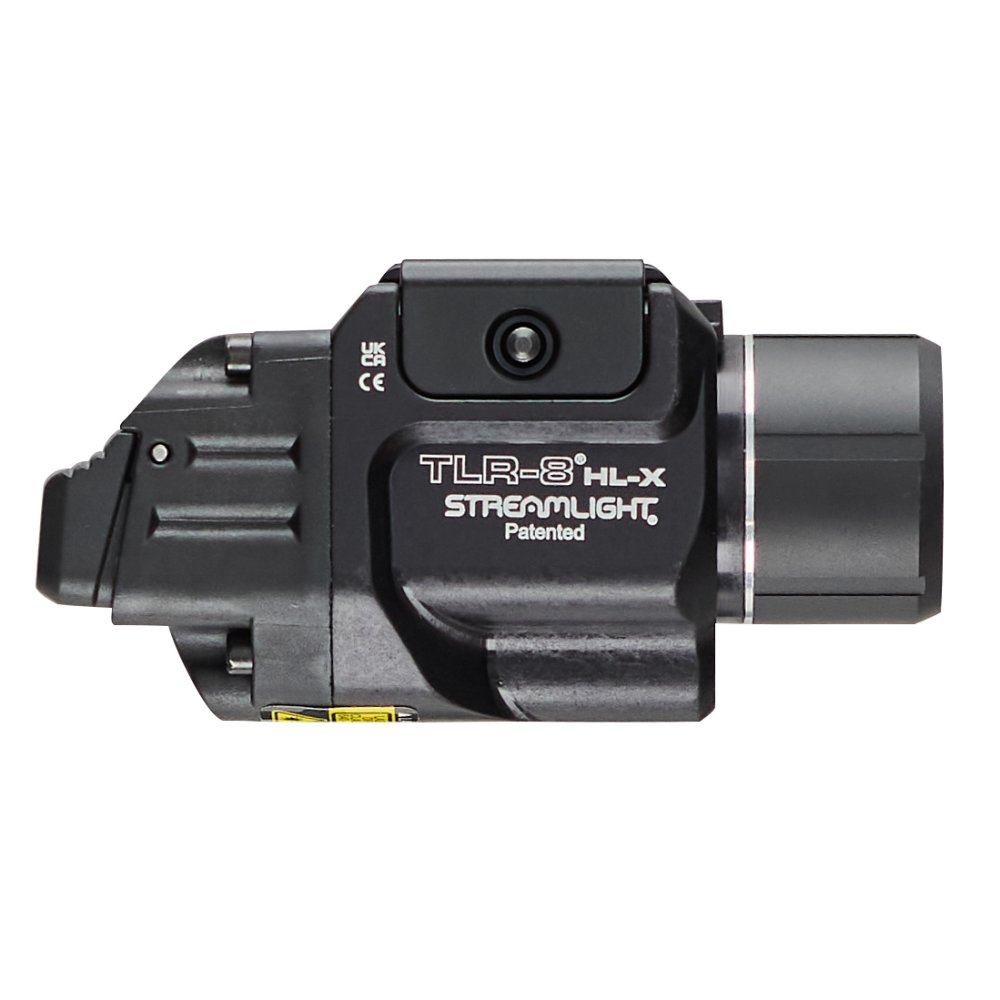

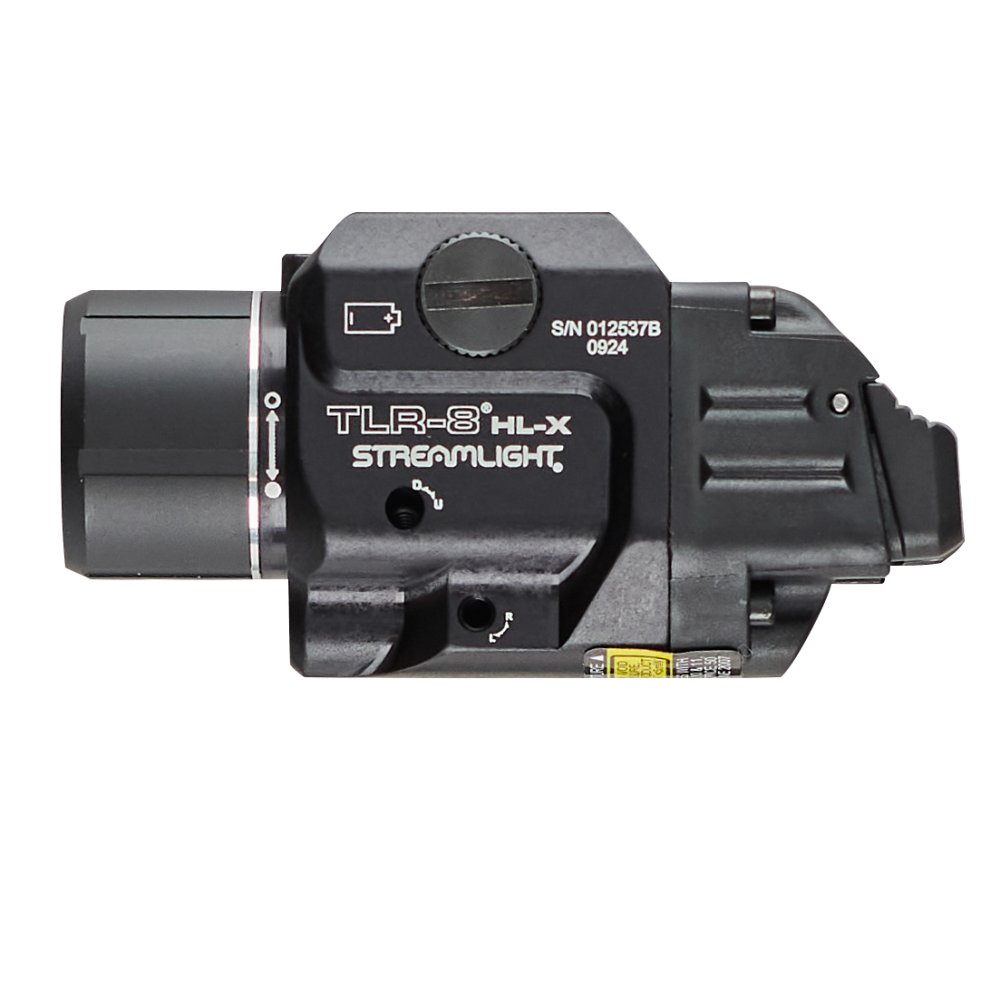

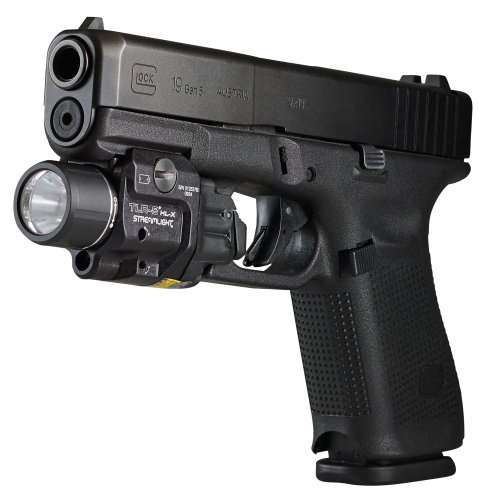

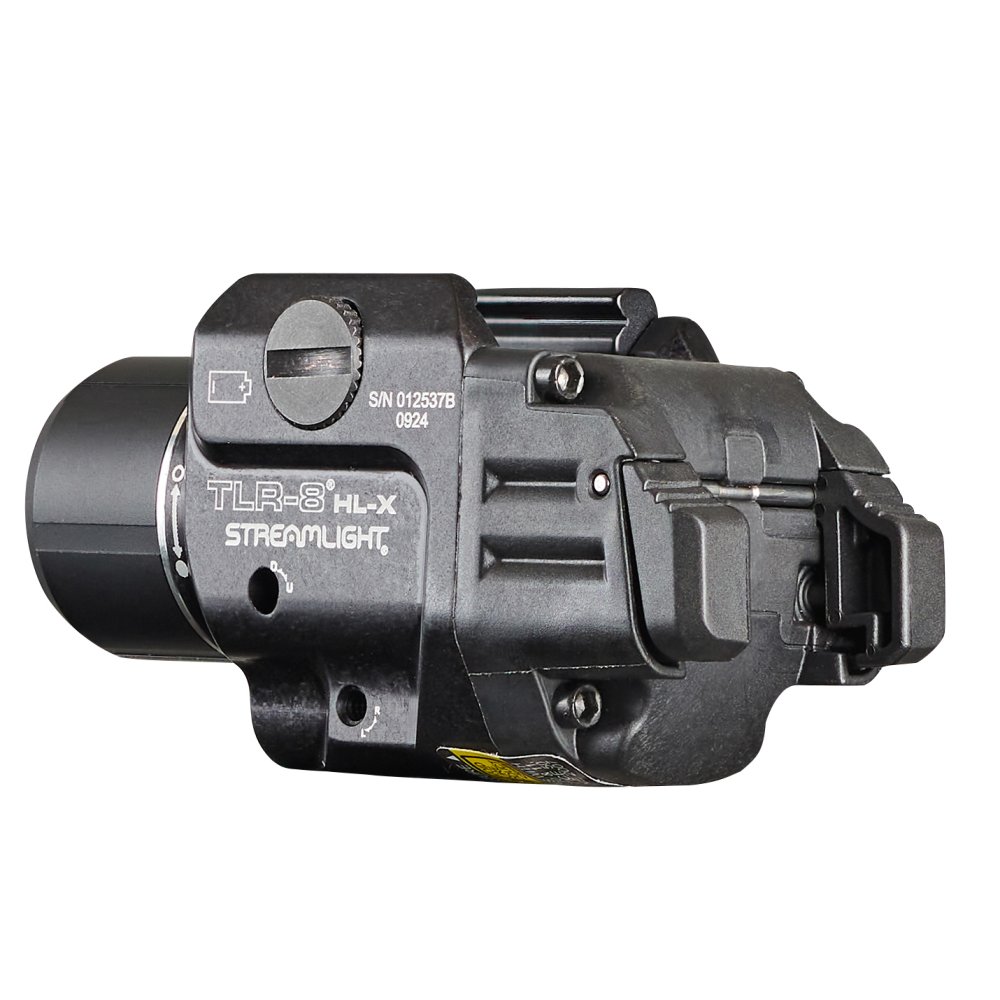

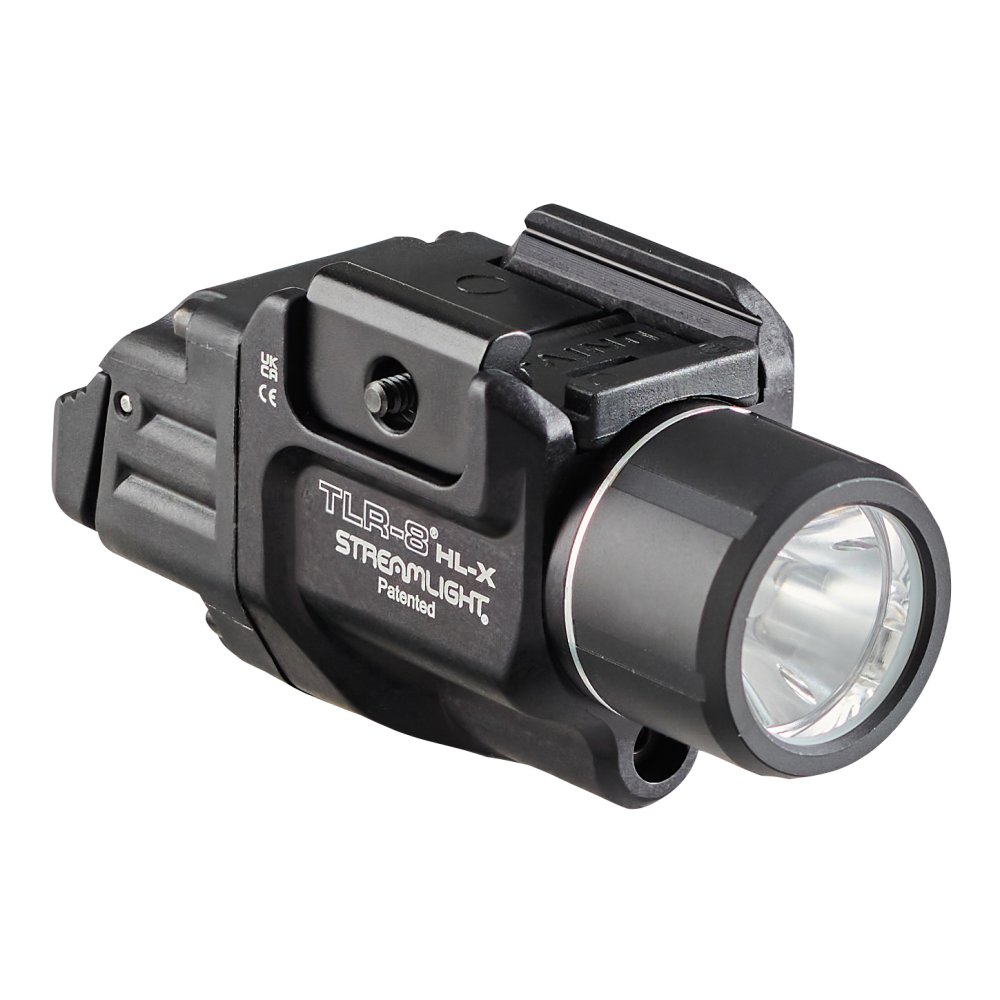

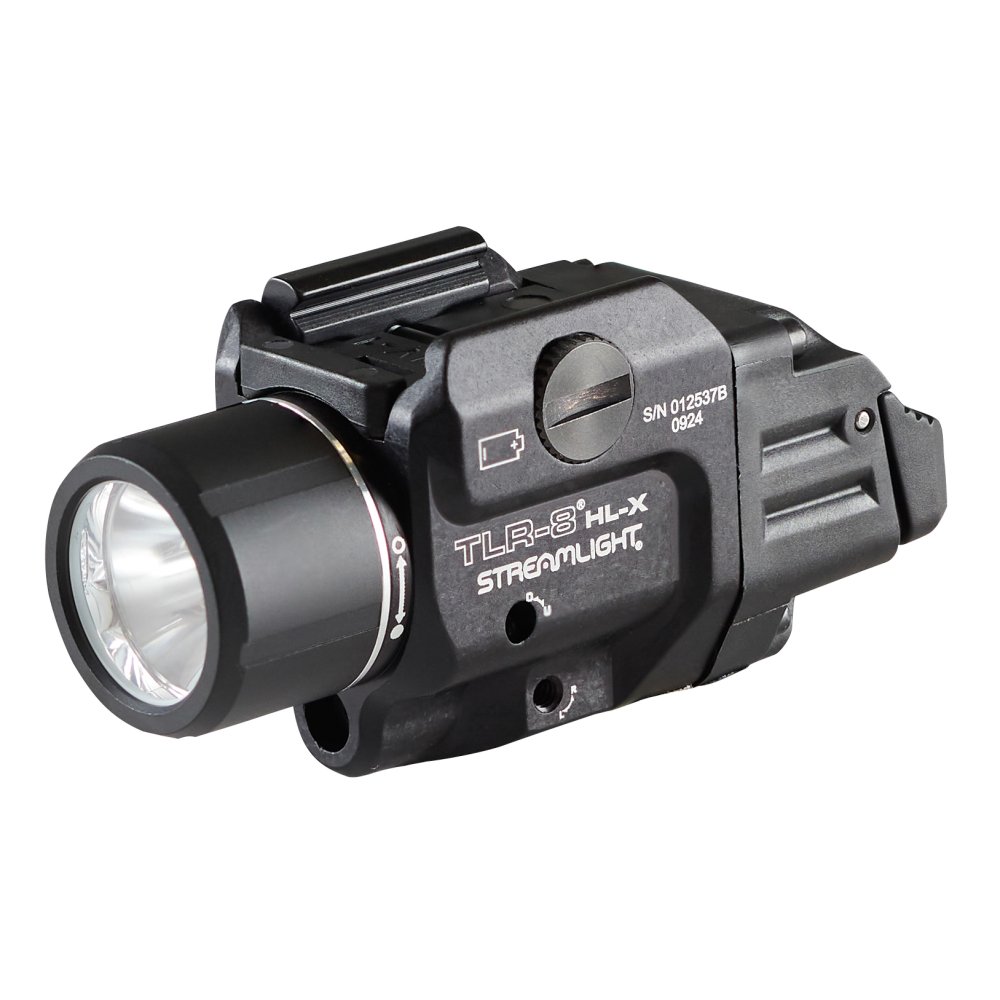

Streamlight TLR-8 HL-X USB is a compact, multi-fuel weapon-mounted light with an integrated red laser, designed for professional handgun use. It combines high lumen output, high candela intensity, and flexible power options in a low-profile housing suitable for duty or everyday carry setups.

When powered by the SL-B9 rechargeable Li-Ion battery pack (included), the light delivers 1,000 lumens and 22,000 candela with a beam distance of up to 297 meters. The output can be user-programmed to 500 lumens and 11,000 candela for extended runtime. Alternatively, it operates on a single CR123A battery, providing 500 lumens and 11,000 candela. This flexibility allows the user to adapt performance to mission requirements and battery availability.

The custom TIR optic produces a concentrated beam with effective peripheral spill for positive target identification while maintaining situational awareness. The integrated 640 –660 nm red laser offers visible, precise aiming in low-light conditions.

The body is constructed from 6000 series machined aircraft aluminum with a black anodized finish. The switch housing is made of impact- and chemical-resistant engineered polymer. The BOROFLOAT glass lens is heat-resistant, shock-mounted, and scratch-resistant.

The one-handed snap-on interface allows safe attachment and removal without tools and without placing hands in front of the muzzle. Ambidextrous rear switches with HIGH and LOW options, provide momentary and constant-on activation. Modes (LED only, LED/Laser, Laser only) are selected by pressing both switches simultaneously. The light also features a user-activated strobe and a “Safe-Off” function to prevent accidental activation.

FEATURES

• Multi-fuel operation: SL-B9 Li-Ion or CR123A
• 1,000 lm / 22,000 cd (SL-B9)

• 500 lm / 11,000 cd (CR123A or programmable mode)
• Up to 297 m beam distance

• Integrated 640 – 660 nm red laser
• Modes: LED / LED + Laser / Laser

• Programmable output and strobe
• Ambidextrous controls

• Front-loading battery without removing from firearm
• IPX4 water-resistant

• Extensively live-fire tested
• Serialized for identification

SPECIFICATIONS

Output (SL-B9): 1,000 lm / 22,000 cd / 297 m
Output (CR123A): 500 lm / 11,000 cd / 210 m
Runtime (SL-B9 high): 30 min
Runtime (SL-B9 programmed): 1 h
Runtime (CR123A): 1.5 h
Laser: 640 – 660 nm red, 29 h runtime
Battery: 1× SL-B9 Li-Ion (USB-C rechargeable) or 1× CR123A
Material: 6000 series aluminum, black anodized
Lens: BOROFLOAT glass
Dimensions: 2.90 × 1.18 × 1.50 in
Weight: 3.14 oz (SL-B9) / 3.04 oz (CR123A)

Product code: 69465

Manufacturer: Streamlight, USA
