Streamlight TLR-1 HL-X USB

Streamlight TLR-1 HL-X USB

Streamlight TLR-1 HL-X USB is a high-output weapon-mounted light designed for duty, defensive, and professional applications on handguns and long guns. This model is focused purely on maximum white-light performance, reliability, and power flexibility, without an integrated laser.

When powered by two SL-B9 rechargeable Li-Ion battery packs (included), the light delivers 1,500 lumens and 20,000 candela with a beam distance of up to 283 meters. It can also operate on two CR123A batteries, providing 1,000 lumens and 15,000 candela with a 245-meter beam distance. The multi-fuel system allows adaptation based on mission requirements and battery availability.

The reflector produces a concentrated primary beam with sufficient peripheral illumination for both target identification and situational awareness. Regulated electronics ensure consistent output throughout the battery cycle.

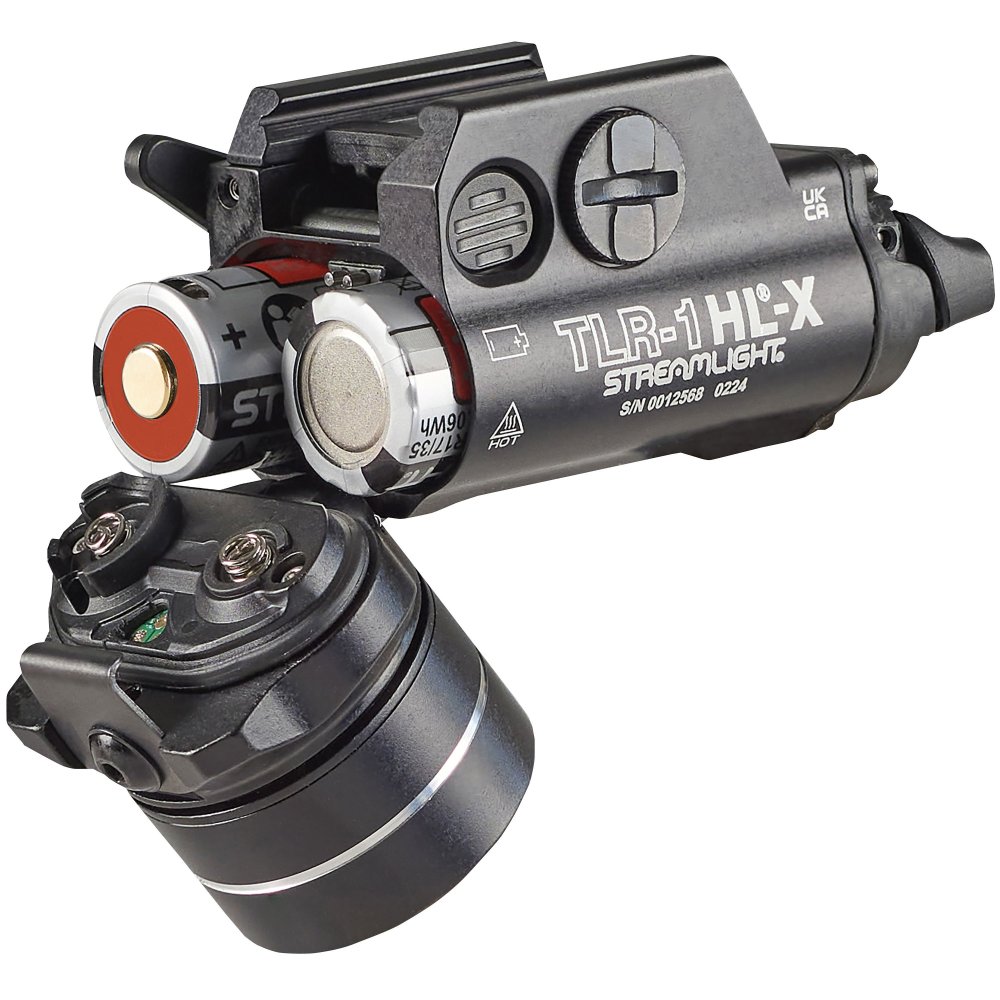

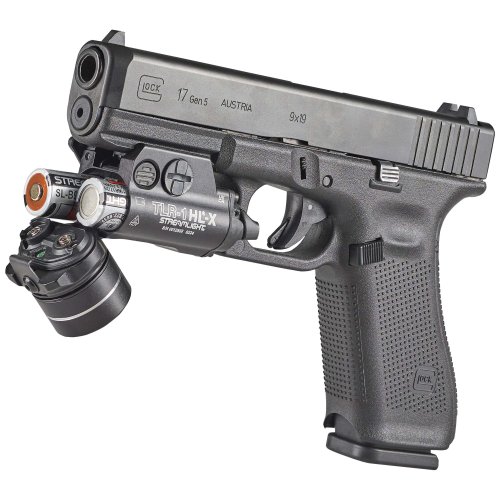

A key feature of the HL-X is its front-loading battery compartment with a hinged face cap. Batteries can be replaced without removing the light from the firearm, reducing downtime.

The body is constructed from 6000 series machined aircraft aluminum with a black anodized finish. The BOROFLOAT glass lens is impact- and heat-resistant. The light is IPX7 rated (waterproof to 1 meter for 30 minutes) and extensively live-fire tested.

Ambidextrous rear paddle switches provide momentary and constant-on activation. Both standard and extended switches are included to match individual shooting style. A user-programmable strobe mode adds additional versatility.

FEATURES

• 1,500 lm / 20,000 cd (SL-B9)
• 1,000 lm / 15,000 cd (CR123A)

• Up to 283 m beam distance
• Multi-fuel: 2× SL-B9 or 2× CR123A

• Front-loading battery compartment
• User-programmable strobe

• Ambidextrous momentary/constant-on operation
• Interchangeable standard and extended paddles

• Tool-less rail grip clamp
• MIL-STD-1913 (Picatinny) compatible

• IPX7 waterproof (1 m / 30 min)
• Extensively live-fire tested

• Serialized for identification

SPECIFICATIONS

Output (SL-B9): 1,500 lm / 20,000 cd / 283 m
Output (CR123A): 1,000 lm / 15,000 cd / 245 m
Runtime SL-B9: 1 hour
Runtime CR123A: 1.5 hours
Battery: 2× SL-B9 Li-Ion (USB-C) or 2× CR123A
Material: 6000 series aluminum, black anodized
Lens: BOROFLOAT glass

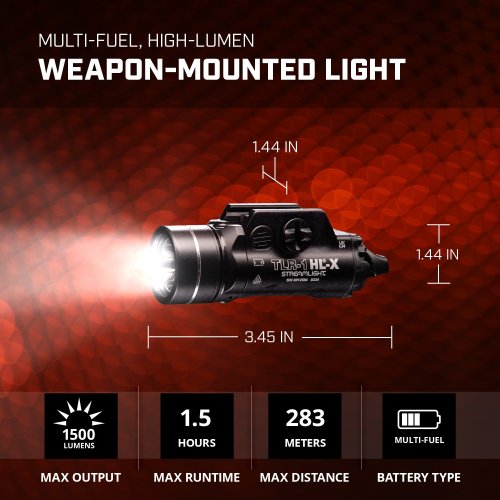

Dimensions: 3.45 × 1.44 × 1.44 in
Weight: 5.19 oz (SL-B9) / 4.94 oz (CR123A)

Product code: 69501

Manufacturer: Streamlight, USA
